| Place of Origin: | CHINA |
|---|---|
| Brand Name: | MHC AP |
| Certification: | ISO9001 |
| Model Number: | 43154-S47-N01 |
| Minimum Order Quantity: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | Neutral Packing or As Requirement |
| Delivery Time: | 1-5 work days, mainly depends on the quantity |
| Payment Terms: | T/T Western Union Paypal |
| Supply Ability: | 1000pcs/ month |
| Part Number: | 43154-S47-N01 | Part Name: | Brake Shoe |
|---|---|---|---|
| Car Make: | For Honda | Car Model: | HONDA CRV LEGEND SHUTTLE |
| Material: | Metal | Diameter: | 170 Mm |
| Width: | 35 Mm | ||
| Highlight: | 43154-SX0-003,43154-S47-N01 Brake Shoe,170mm Auto Parts Honda |
||

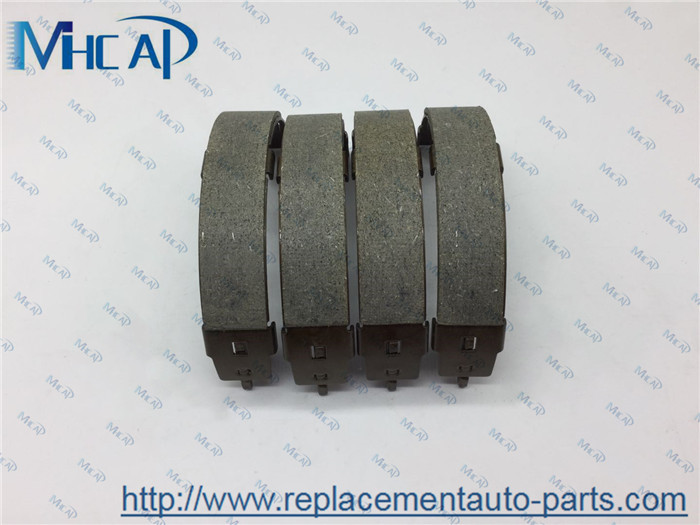

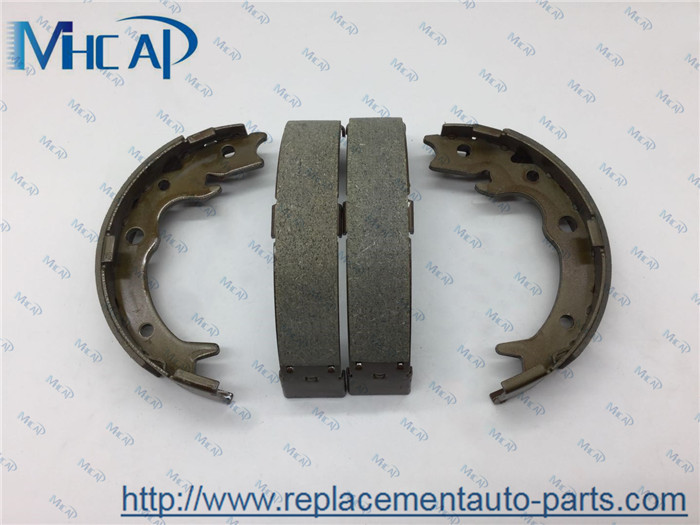

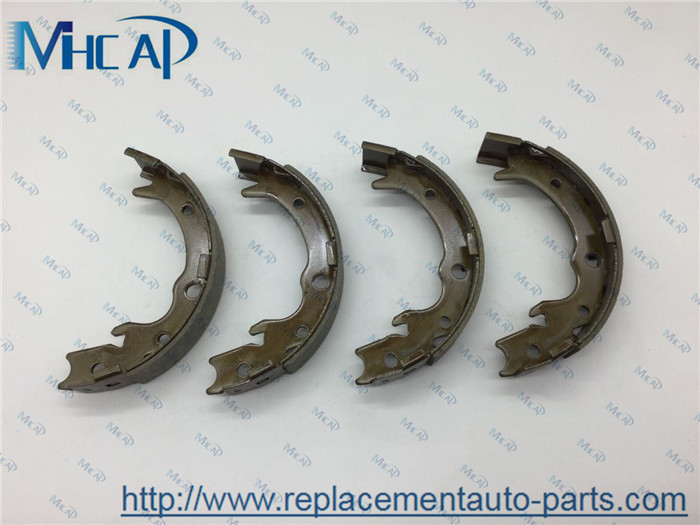

Auto Parts Brake Shoe 43154-SX0-003 43154-S47-N01 For Honda CRV LEGEND SHUTTLE
Specifications:
| 1. OEM No.: | 43154-SX0-003 |
| 2. Part Name: | Brake Shoe |
| 3. Model: |
HONDA CRV LEGEND SHUTTLE |
| 4. Size: | OEM Standard |
| 5. Condition: | New |
| 6. Package: | Bag or Box , Customer Request |
| 7. Diameter: |
170 mm |
| 8. Width: | 35 mm |
Applicable Model:
| Model | Enigne | CC | KW | Cylinder | Type | Year |
| HONDA CR-V II (RD_) 2001/09-2007/03 | ||||||
| CR-V II (RD_) 2.0 (RD4) | K20A4 | 1998 | 110 | 4 | Closed Off-Road Vehicle | 2001-2007 |
| CR-V II (RD_) 2.2 CTDi (RD9) | N22A2 | 2204 | 103 | 4 | Closed Off-Road Vehicle | 2005-2006 |
| CR-V II (RD_) 2.4 Vtec 4WD (RD7) | K24A1 | 2354 | 118 | 4 | Closed Off-Road Vehicle | 2001-2006 |
| HONDA LEGEND III (KA) 1996/02-2004/09 | ||||||
| LEGEND III (KA) 3.5 i 24V (KA9) | C35A2 | 3474 | 151 | 6 | Saloon | 1996-1997 |
| HONDA SHUTTLE (RA) 1994/06-2004/06 | ||||||
| SHUTTLE (RA) 2.2 16V (RA1) | F22B8 | 2156 | 110 | 4 | MPV | 1994-1998 |
| SHUTTLE (RA) 2.3 16V (RA3, RA6) | F23A7 | 2254 | 110 | 4 | MPV | 1997-2004 |
| HONDA STREAM (RN) 2001/05- | ||||||
| STREAM (RN) 1.7 16V (RN1) | D17A2 | 1668 | 92 | 4 | MPV | 2001- |
| STREAM (RN) 2.0 16V (RN3) | K20A | 1998 | 115 | 4 | MPV | 2001- |
What are brake shoes?
Brake shoes carry the brake lining inside brake drum systems. They are a curved piece of metal, with a friction material fixed to one side.
When the driver applies the brake, a wheel cylinder in the drum brake system forces the brake shoe outward, against the inside of the drum. This creates friction between the lining and drum, causing the car to brake. The kinetic energy is dissipated as heat. Brake shoes are often used for the rear axle, especially as most modern cars brake more sharply on their front wheels, so the temperatures the rear brakes need to handle aren’t so high. As well as being less expensive to manufacture, drum brake systems can be more effective as a parking brake than disc brakes.
Do I need brake pads or brake shoes?
While you can’t mix and match on the same wheel – for example using brake pads with drum brakes or brake shoes with disc brakes – it is possible to have both brake pads and shoes on the same car. In fact, many cars use a combination of the two, often smaller vehicles, with disc brake systems fitted on the front axle and drum brake systems fitted on the rear axle.
About us:
Our company specialized in auto spare parts over 16 years, supply all kinds of auto parts with rich experience , proven technique. Especially for chassis parts: engine mount, control arm, brake pads, brake disc, brake caliper, bearing , hub bearing, steering rack , tir rod end, rack end, ball joint, etc. and electrical parts: sensor, clock spring, window switch, spark plug, ignition coil, injector, fuel pump, etc. and lots of HONDA spare parts for Accord, Civic, Crv , Fit, City, Odyssey. Also body parts for BMW.
We are looking forward that more and more oversea friends join in our family for further development in spare parts!
FAQ:
1. Are you a factory or Trading company ?
A: We are a company which is the joint of trade and industry.
2. Where is your company located ? How can I visit there ?
A; Our company is located in Guangzhou, all clients, from home and abroad, are warmly welcomed to visit us .
3. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
4. What’s the MOQ for each items ?
A: If we have stock , any quantity accepted.
5. Could we supply samples ?
A: We offer samples,but the samples should be paid.
6. What’s the delivery time ?
A: Samples(Retails);1-2 working days;
B: Bulk Order:15-20 working days.
7. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.
8. How do you send goods?
A: The parts can be shipped by DHL/EMS/TNT/FedEx/UPS or other special methods.
We will arrange it for you if you have no preference on the express carrier.
Contact us:
If you have any questions, please feel free to contact with us. We would be very glad to help you. We will get back to you within 24 hours or get back to you immediately.
We are sincerely looking forwards to cooperating with you
.
